Here, you'll learn how to update and edit the CONOPS map, including:

  • Adding a new box to the map with details like services provided
  • Changing the location of an existing box or updating the services it shows
  • Removing a box from the map


Step-by-step example

Scenario: You need to update the CONOPS map in LogIE by adding new services and removing others.

1) To begin, switch to the CONOPS module if you are currently in a different module in LogIE. You will then see that the editor panel displays the Concept of Operations (CONOPS) layer.

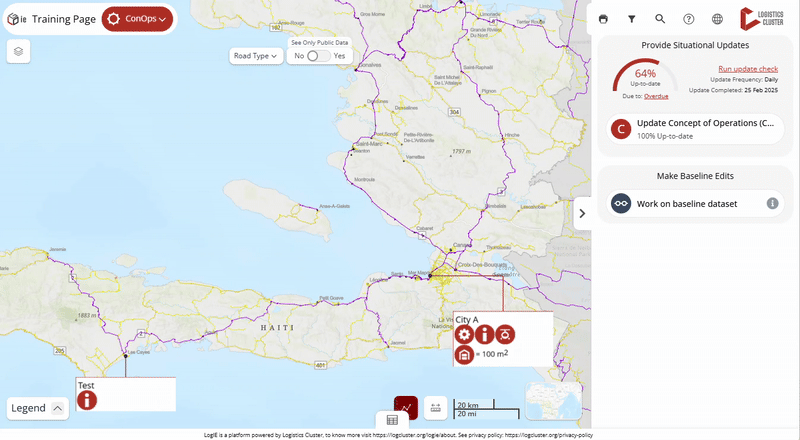

2) Adding a new box on the map for a specific location. If you need to add services to a place that is not yet on the map, follow these steps:

  • Click on "Update CONOPS (Concept of Operations)" in the editor panel.
  • Click the plus (+) button at the bottom of the screen to create a new entry.
  • Locate the place using one of these methods:
    • Search for the place in the Editor Panel’s search box.
    • Enter the coordinates manually.
    • Click directly on the map to select the location.
  • Add the necessary details:
    • In the caption field, enter the text that will appear at the top of the box. Typically, this shows the name of the location (e.g., city) where the services are provided.
    • Use the toggle switches to select the services provided.
    • Fill in any additional relevant information. If you indicate Storage (climate-controlled or not), you can also specify the storage capacity in square meters, which will be displayed on the map.

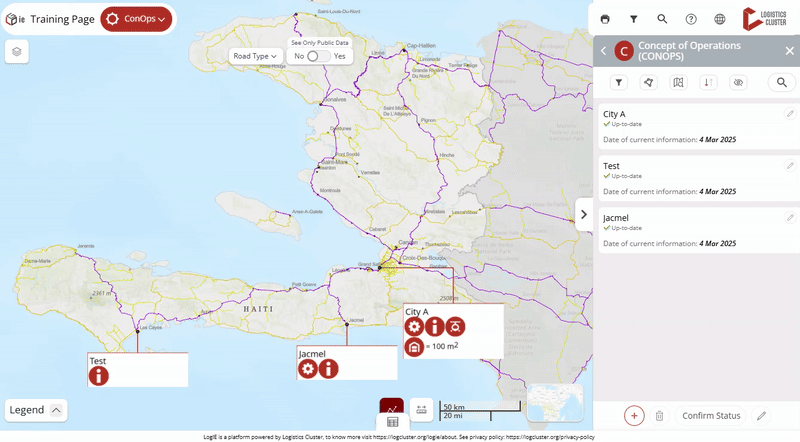

3) Modifying the services displayed in a box on the map. To update services for an existing box that appears on the map, you have two options:

  • Click on "Update CONOPS (Concept of Operations)" in the editor panel.
  • You have two options to locate the box you want to modify:
    • Find the box in the list and click the pencil icon next to it.
    • Click directly on the box on the map, then select the pencil icon in the popup (located at the top right).
  • Now you can add, remove, or update the services by modifying the form that appears. After making your changes, click on "Save and Confirm Status."

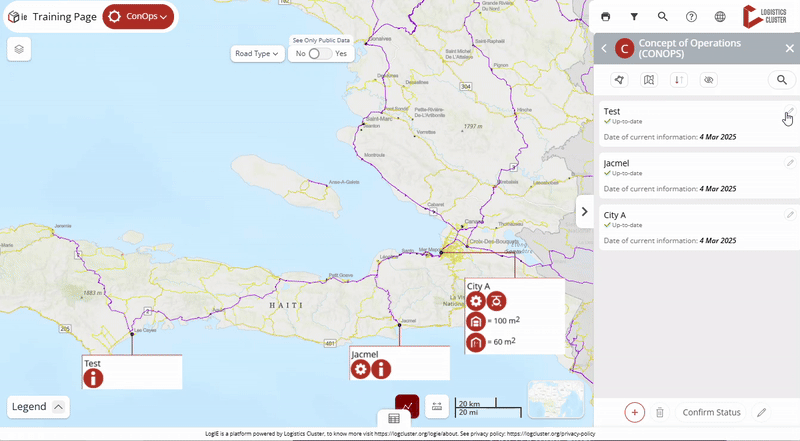

4) Deleting a box on the map (removing all services from a location)

  • You have two options to locate the box you want to delete:
    • Find the box in the list and click the pencil icon next to it.
    • Click directly on the box on the map, then select the pencil icon in the popup (located at the top right).
  • Click the bin (delete) icon in the Editor Panel.
  • Confirm the deletion.
